uaEFI
357,00 €
Produktinformationen "uaEFI"

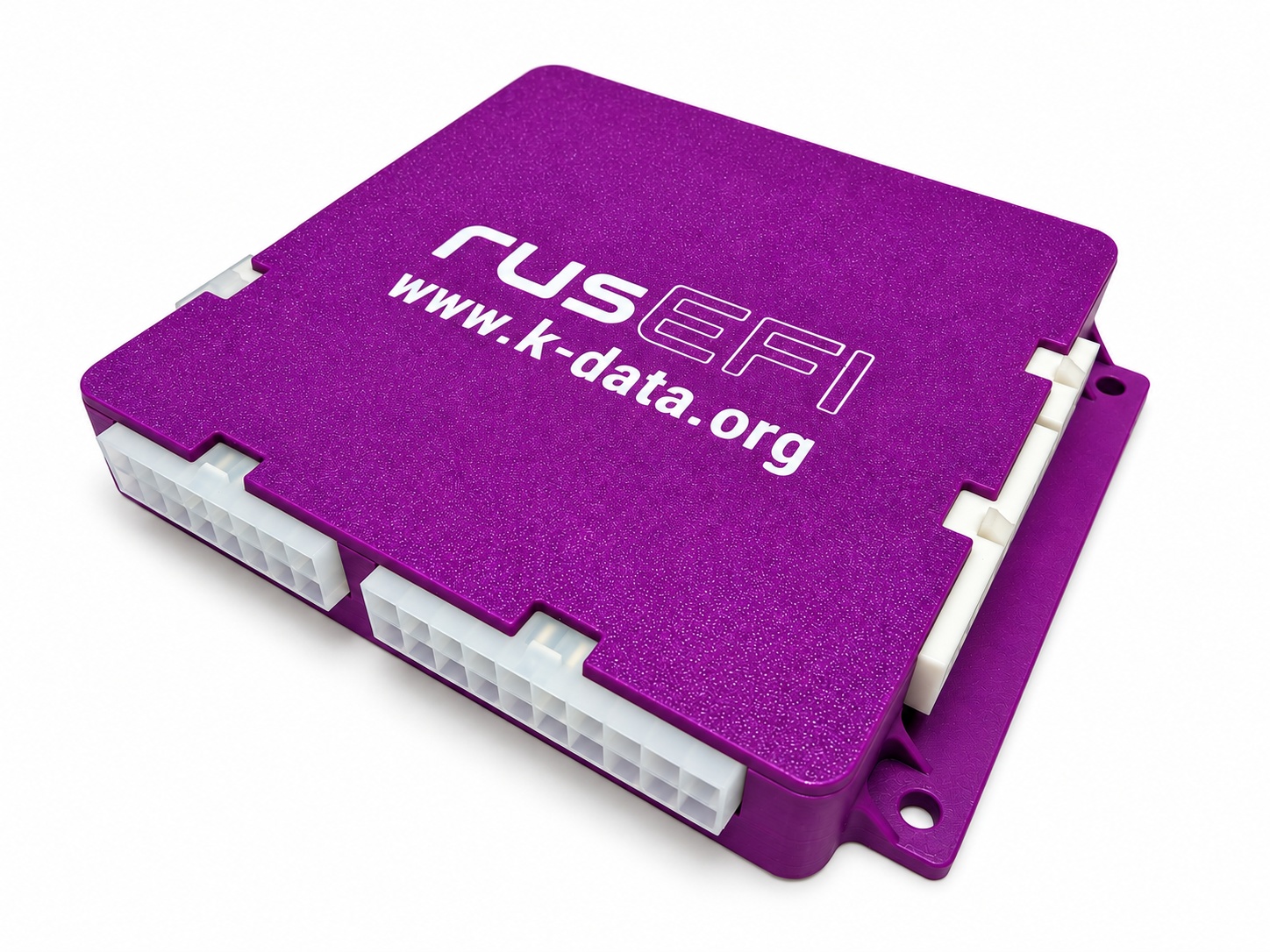

uaEFI – Powerful & Compact Standalone ECU
uaEFI (Ultra Affordable EFI) is a compact, fully programmable standalone engine management system based on the rusEFI open-source platform.
Designed for engine conversions, motorsport and performance applications, uaEFI combines sequential fuel injection and ignition control with wideband lambda control, electronic throttle control, CAN communication, SD card data logging and extensive sensor support.
Technical Capabilities
Fuel Injection & Ignition
- 6 sequential injector outputs
- Designed for high-impedance fuel injectors
- 6 sequential logic-level ignition outputs
- Designed for smart ignition coils
- Optional on-board IGBT ignition drivers
- Configurable firing order and injection sequence
Trigger & Sensor Inputs
- 2 VR sensor inputs
- 3 Hall sensor inputs
- 9 + 2 analog inputs
- Flex Fuel sensor input
- Knock sensor input
- Integrated digital barometric pressure sensor
Motor & Throttle Control
- Two DC motor drivers up to 6 A
- Electronic throttle body / DBW
- Dual electronic throttle support
- Electronic wastegate control
- 4-wire stepper idle valve support
Communication & Logging
- USB communication
- CAN Bus communication
- Up to two CAN interfaces
- On-board SD card data logging
- TunerStudio compatible
- rusEFI Console support
Integrated Wideband Lambda Controller
uaEFI includes an on-board wideband oxygen sensor controller for the Lambda Sensor LSU 4.9. No separate external wideband controller is required. Lambda data is available directly to the ECU for monitoring, tuning and closed-loop fuel control.

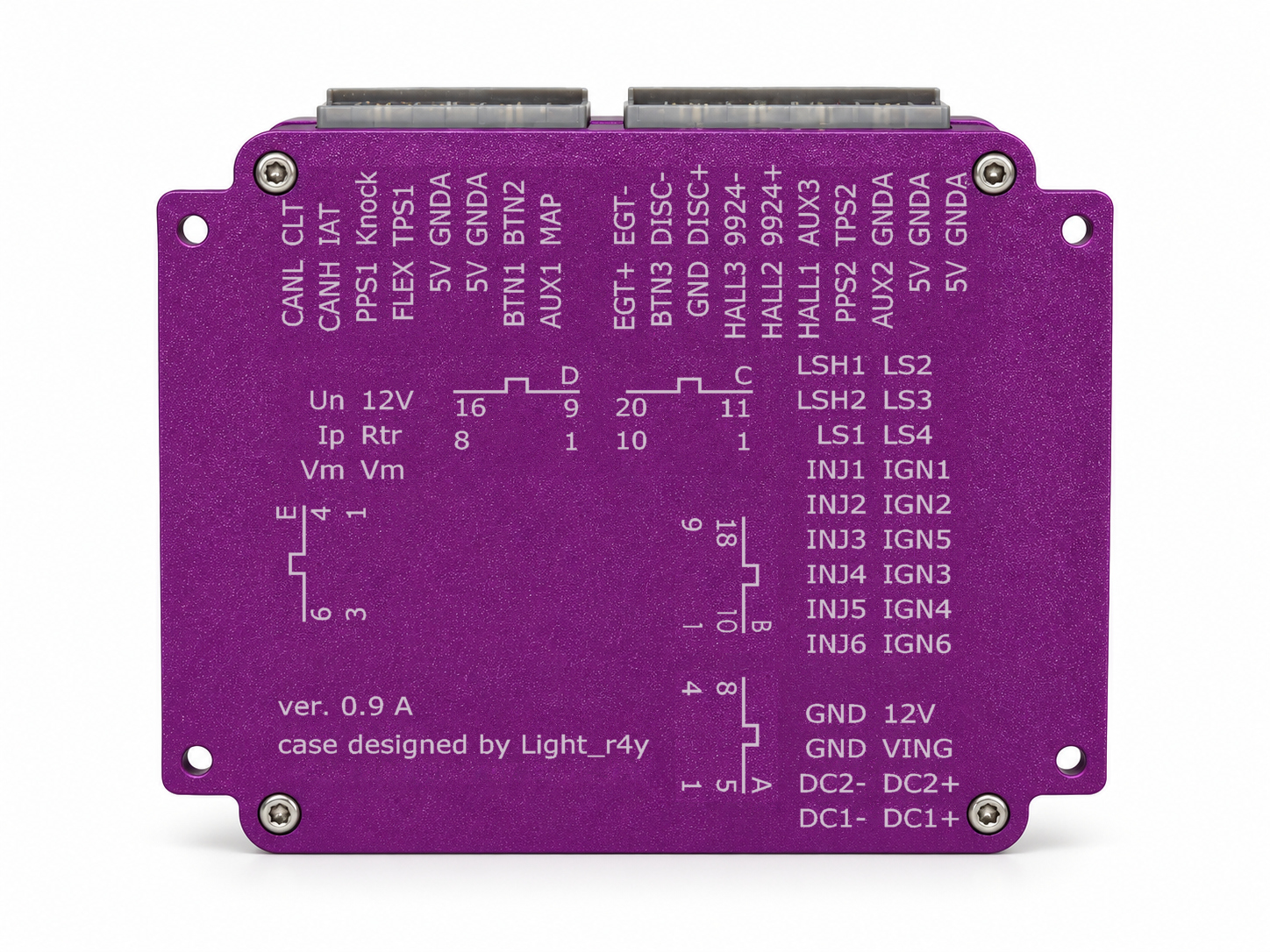

Connector & Pinout Overview
uaEFI uses five Molex Mini-Fit Jr. harness connectors. The overview below shows the main function groups. Always use the current official interactive pinout when building the wiring harness.
Power & Motor Control
8 Pins- DC motor / electronic throttle outputs
- Power and chassis grounds
- Ignition switch / battery voltage input
- +12 V from main relay
Injection, Ignition & Outputs
18 Pins- Injector outputs 1–6
- Ignition coil outputs 1–6
- VVT outputs
- Fuel pump relay output
- Fan and main relay outputs
- Additional configurable low-side outputs
Trigger & Additional Sensors
20 Pins- VR crank / cam sensor inputs
- Hall sensor inputs
- TPS2 and PPS2
- Fuel pressure / auxiliary analog input
- EGT input
- 5 V sensor supply and sensor grounds
Main Sensors & CAN Bus
16 Pins- MAP sensor input
- TPS1 and PPS1
- Coolant temperature (CLT)
- Intake air temperature (IAT)
- Knock sensor input
- Flex Fuel input
- CAN High / CAN Low
- 5 V sensor supply and sensor grounds
Lambda Sensor LSU 4.9 Wideband
6 PinsE2 – CalR
E3 – Heater −
E5 – Ip
E6 – Vs / Ip
Expansion Options

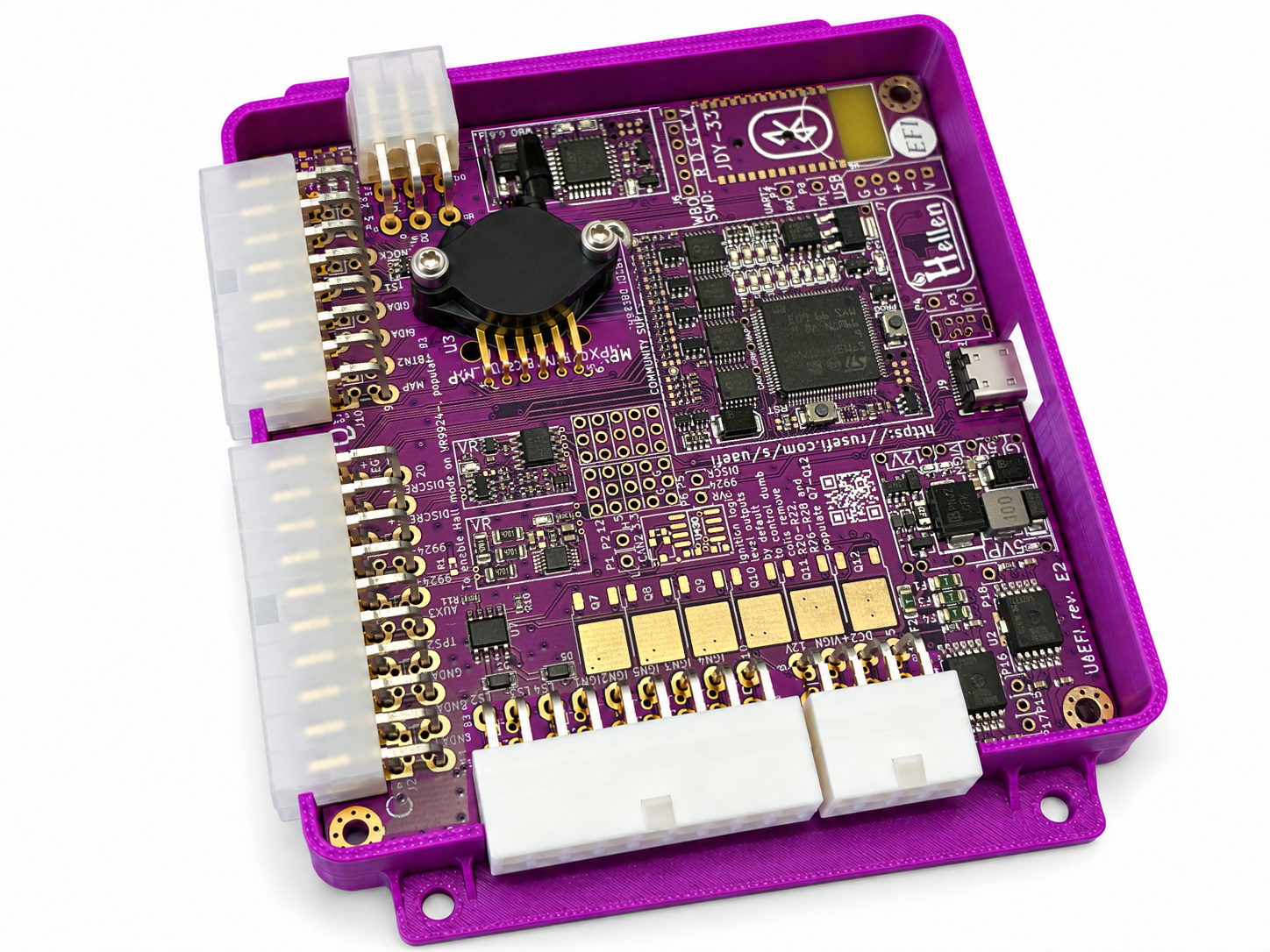

On-board MAP Sensor
KD4400AP already installed.
Bluetooth
Optional JDY-33 module for wireless communication.
Exhaust Temperature
Optional MAX31855 based EGT input.
Second CAN Bus
Optional second CAN interface can be populated.
Powerful & Flexible Software
uaEFI runs the continuously developed rusEFI engine management firmware. Configuration and tuning are performed using TunerStudio together with the rusEFI Console.
Functions include fuel and ignition control, boost control, electronic throttle control, idle control, VVT, Flex Fuel, CAN communication, Lua scripting, engine protection and extensive data logging.
Installation & Getting Started
Official rusEFI documentation for wiring, configuration, firmware installation, first start and diagnostics.
|
ECU
uaEFI Documentation Specifications & hardware information |
PINOUT
Interactive Pinout Connector & pin assignments |
START
Getting Started From installation to first start |
Technical Support & Documentation
Wiring & Connections
Power, grounds, injectors, ignition coils, sensors, relays and engine wiring.
Open Wiring Guide →Trigger Configuration
Crankshaft and camshaft trigger setup, synchronization and configuration.
Open Trigger Guide →Wideband Lambda
Lambda Sensor LSU 4.9 wiring, configuration and wideband operation.
Open Wideband Guide →Diagnostics & Logging
Data logging, diagnostics and troubleshooting information.
Open Diagnostics Guide →Important Installation Information
uaEFI is a universal programmable engine management system and requires application-specific wiring and configuration.
Always verify the current uaEFI interactive pinout before connecting the ECU. Incorrect wiring of power supplies, grounds, ignition coils, injectors, electronic throttle bodies or sensors can damage the ECU or connected components.
Standard ignition outputs are primarily intended for smart ignition coils with integrated ignition drivers. Conventional ignition coils require suitable ignition drivers.
Injector outputs are intended for high-impedance fuel injectors. Low-impedance injectors must not be connected directly without an appropriate solution.
Electronic throttle control should only be activated after throttle and accelerator pedal sensors have been correctly wired, checked and calibrated.
Official rusEFI Project
Firmware, documentation and additional technical information are available from the official rusEFI project.
Visit rusEFI.com →
